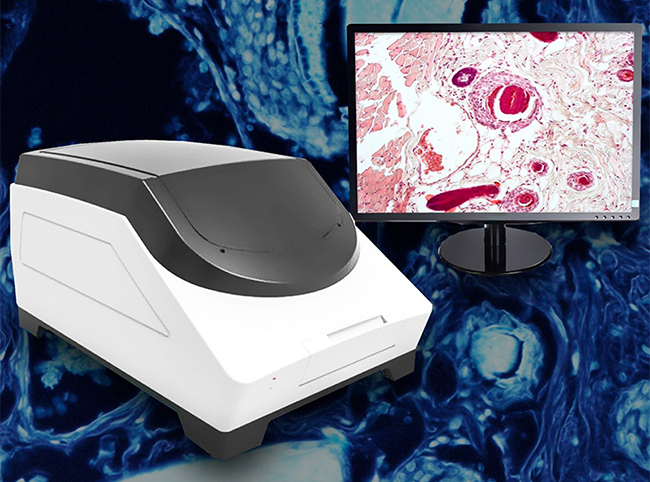

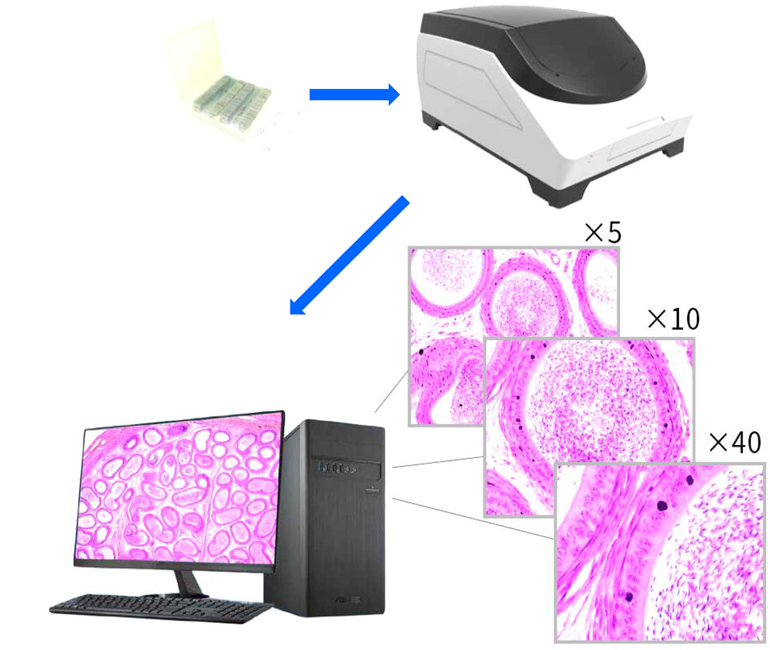

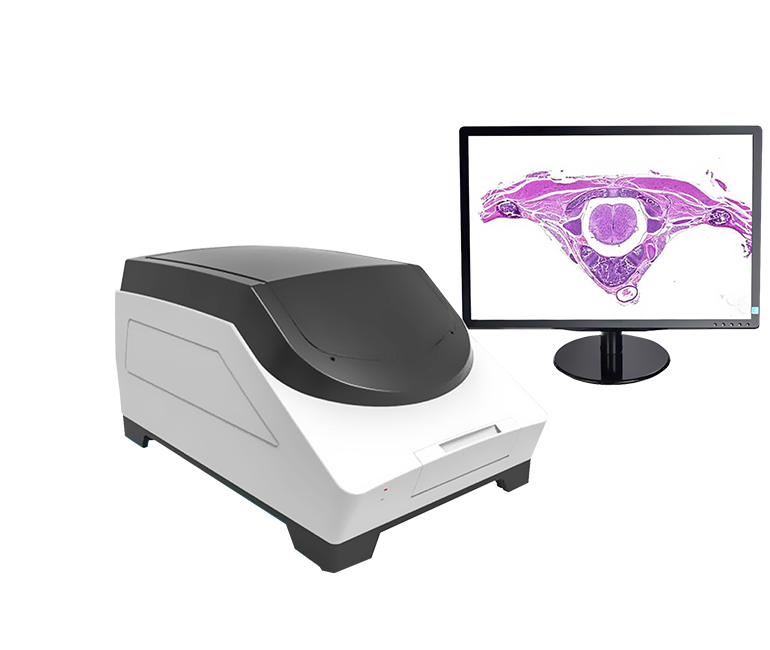

With the automatic microscopic scanning and software system to scan and
seamlessly stitch the traditional glass slide to generate a full field digital slide.
It is mainly composed of slides automatic loading system, optical imaging system,
scanning platform, control system and supporting software

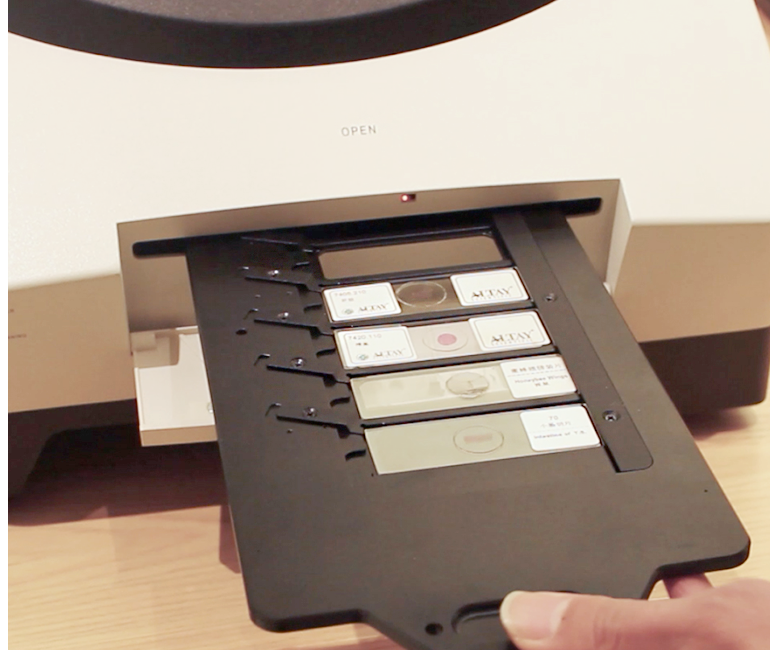

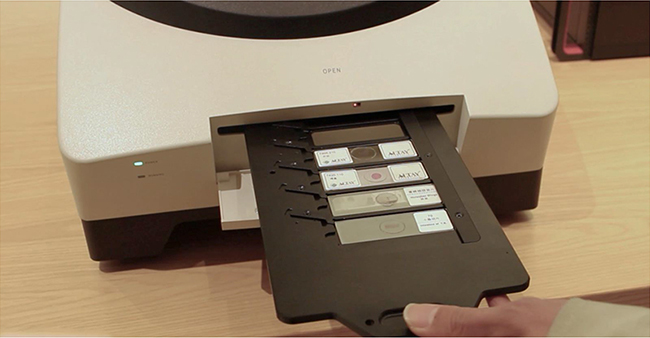

The Unique Magnetic Suction Glass Plate Ensures The Precise Positioning Of Slide Carrier, Avoids Repeated Friction During Loading And Unloading, Ensures Smooth Loading And Prevents Damage From Falling During Loading
• Image Storage And Import Function
• Support: JPEG, Tiff, MPp And Other Formats
• Annotation And Marking Can Be Carried Out
• Teaching Demonstration Atlas Can Be Formed For Teaching
High NA Objective Lens Provides High Light Flux, Improves The Resolution
Of Objective Lens, And Makes The Image Clearer.
The Unique Magnetic Suction Glass Plate Ensures The Precise Positioning Of Slide Carrier, Avoids Repeated Friction During Loading And Unloading, Ensures Smooth Loading And Prevents Damage From Falling During Loading. Upscale Maglev Linear Motor Is Adopted: Running Speed Is 3.2m/s, Acceleration Is 8g. High Precision Full Closed Loop Drive Control System: X/y Axis Motion Resolution 50nm, Z Axis Motion Resolution 50nm. The Repeated Positioning Accuracy Of Slide Carrier Is Less Than 0.1um.
Linear Scanning Technology, Equipped With High Speed Linear Scanning Camera. Ensure High Speed, High Quality And Stable Scanning Imaging. It Can Perform 20 Times And 40 Times High Speed Scanning. The Tissue Area Was 15 Mm X 15 Mm, And The Scanning Time Of 20 Times Was Less Than 40 Seconds.
Standard 20x Plan Apochromatic Objective, N.A. = 0.75. High NA Objective Lens Provides High Light Flux, Improves The Resolution Of Objective Lens, And Makes The Image Clearer. The Illumination System Adopts Customized Led Professional Light Source And Compound Eye Lens Technology To Ensure Ultrahigh Light Energy Utilization And Long-lasting Uniform Lighting.
Standard 20x Plan Apochromatic Objective, N.A. = 0.75. High NA Objective Lens Provides High Light Flux, Improves The Resolution Of Objective Lens, And Makes The Image Clearer. The Illumination System Adopts Customized Led Professional Light Source And Compound Eye Lens Technology To Ensure Ultrahigh Light Energy Utilization And Long-lasting Uniform Lighting.

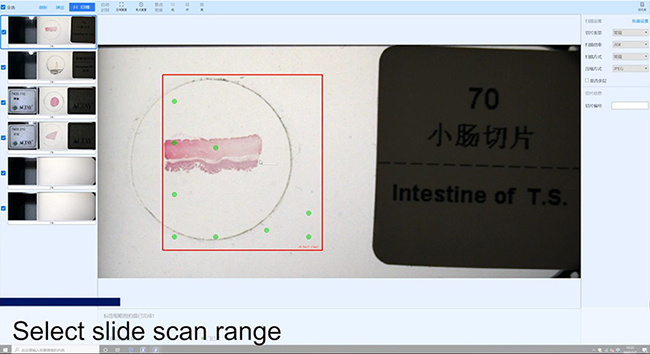

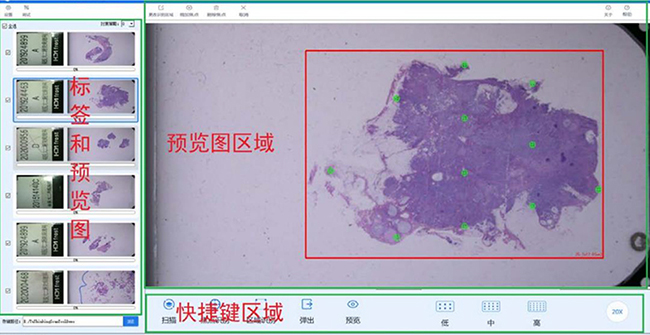

Users Can Customize The Scanning Requirements, Customize And Store The Scanning Area, Location, Multiple, Etc., And Can Quickly Conduct Batch Scanning.
• Image Storage And Import Function For Long-term Archiving Of Experimental Data
• Image Compression Format Support: JPEG, Tiff, MPp And Other Formats

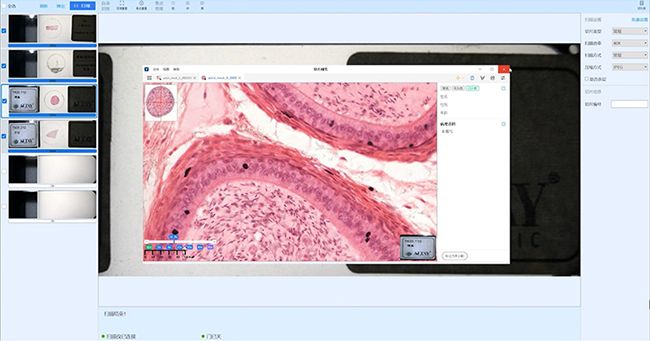

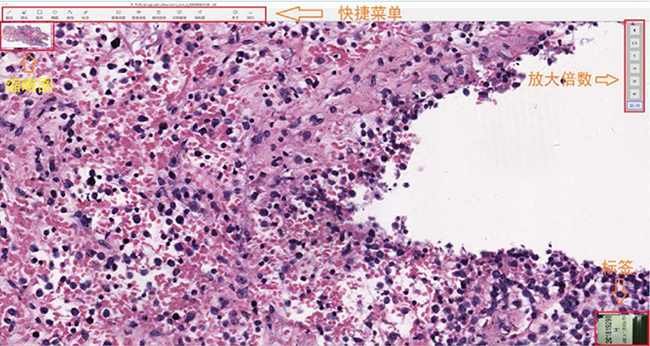

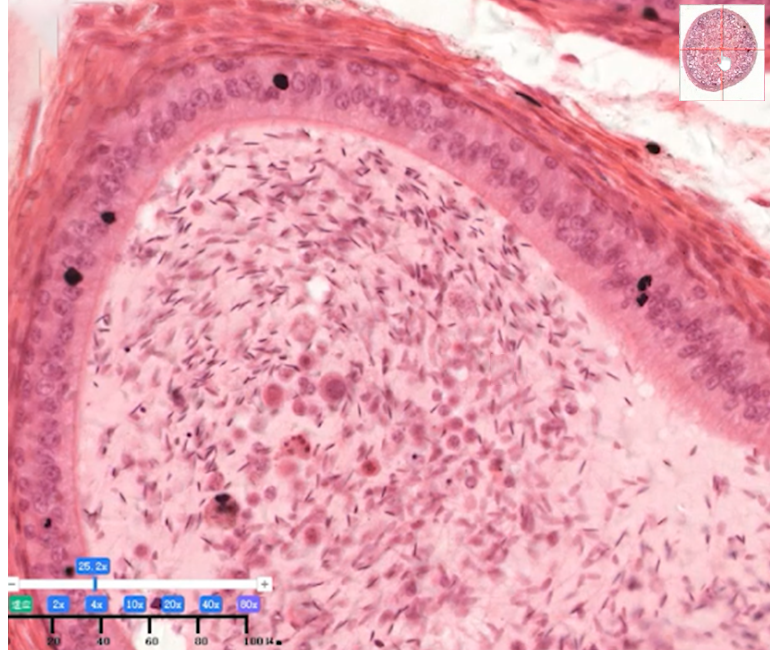

• Scanning Panoramic Information Digital Slide Under Different Scanning Times, Annotation And Marking Can Be
Carried Out
• Standard Teaching Demonstration Atlas Can Be Formed For Teaching
| Liver |
 |

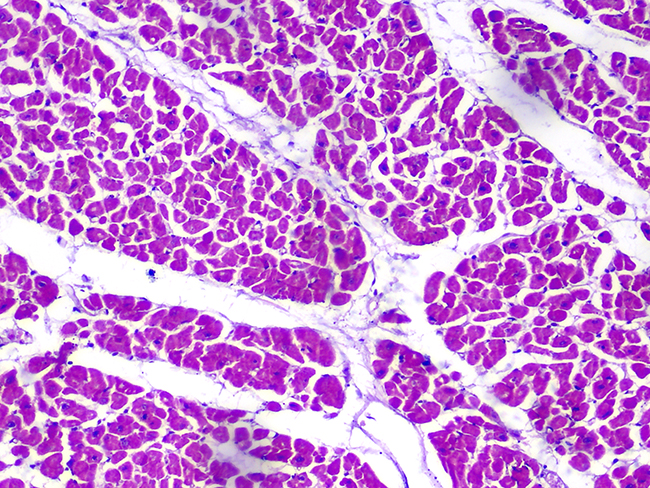

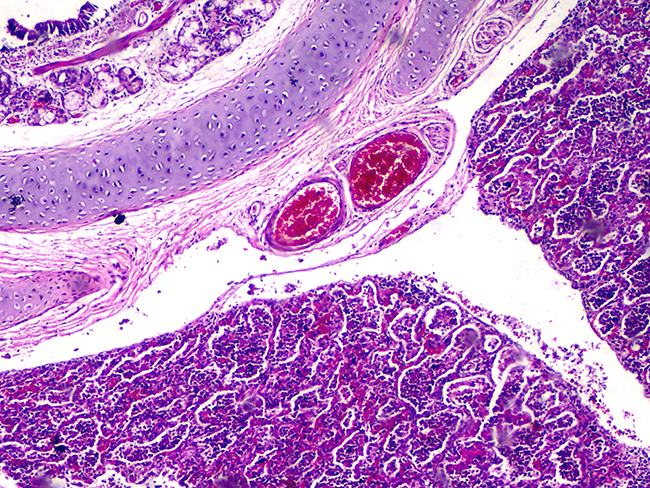

| Interstitial Pneumonia | Rheumatic Myocarditis | ||
 |
 |
 |
