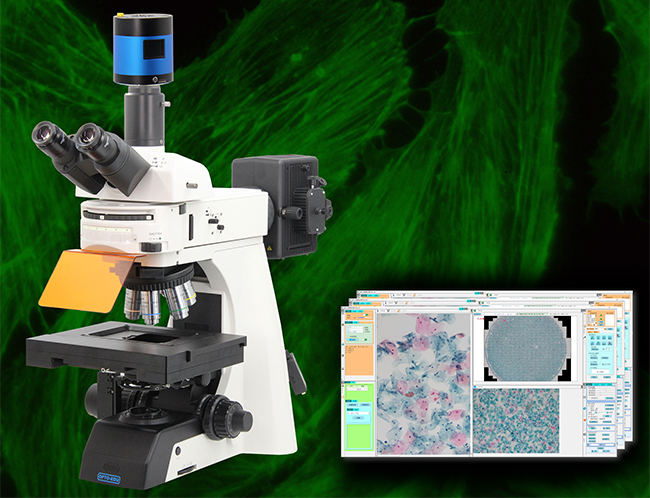

M16.5820 Product Details

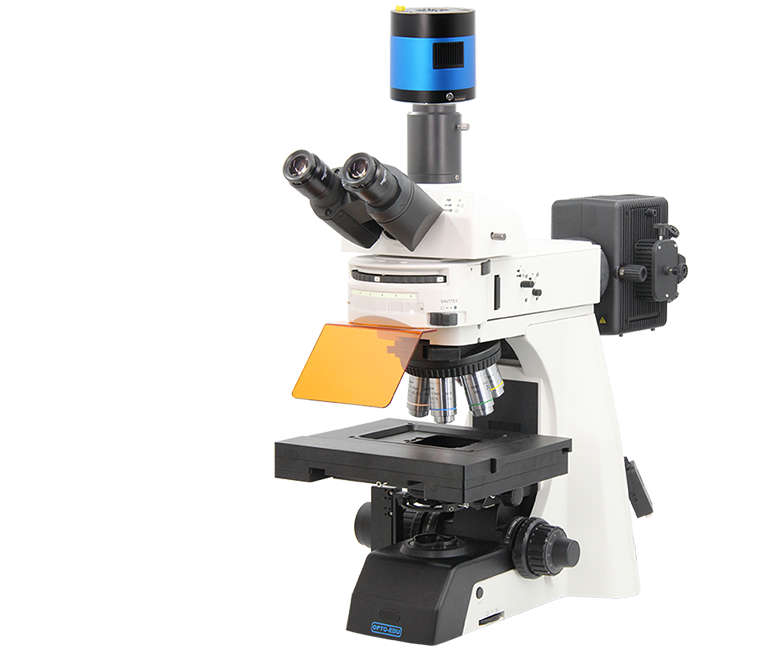

Motorized Fluorescent Microscope, BF/FL, XYZ+Nosepiece Motorized

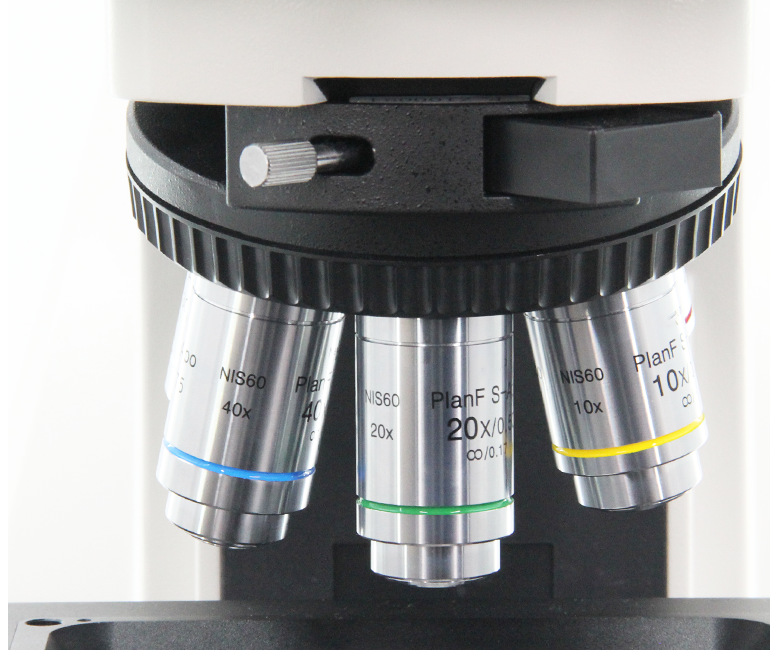

● Infinity Plan NIS 4x10x20x40x100x With 6 Holes Motor Nosepiece, Fluorescent B,G,UV,V

● XYZ Motorized Stage 255x210mm, Moving 85x70x42mm Resolution 0.05um

● Reflect Epi-Fluorescent 100W HBO Mecury Light, Fluorescent Filter B,G,UV,V

● Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring

● USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software

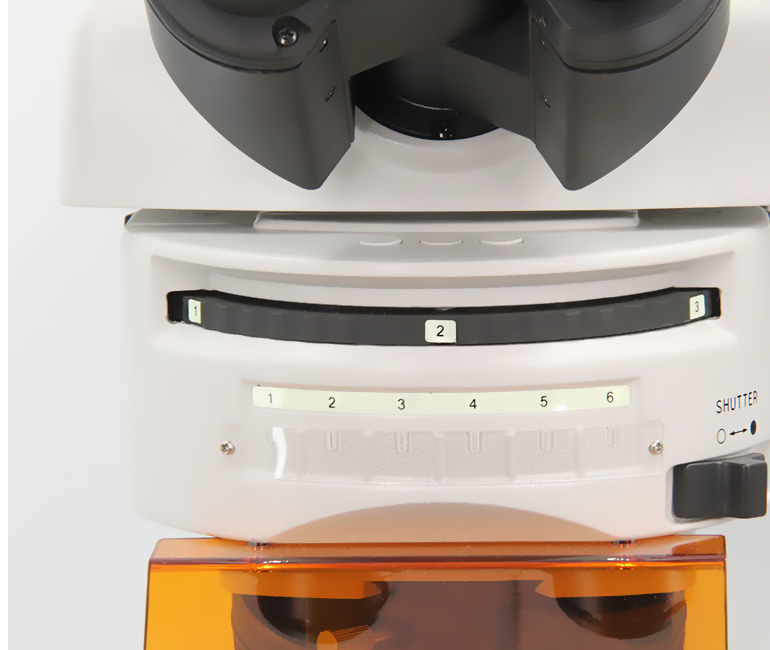

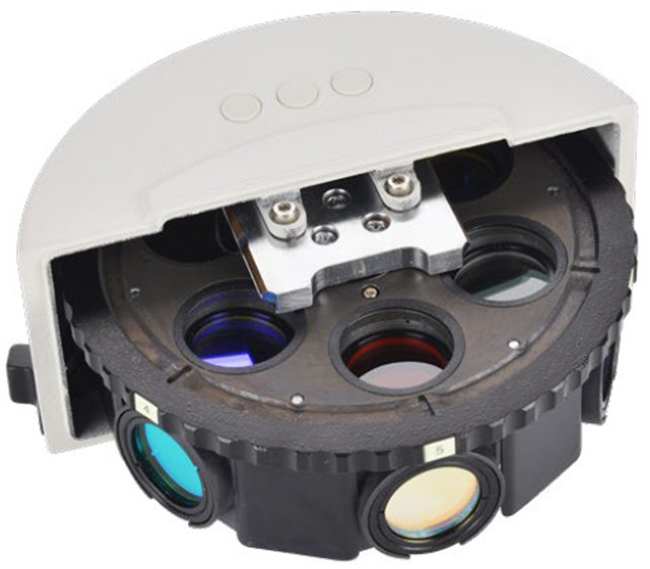

6 Holes Disk Fluorescence Unit

Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View

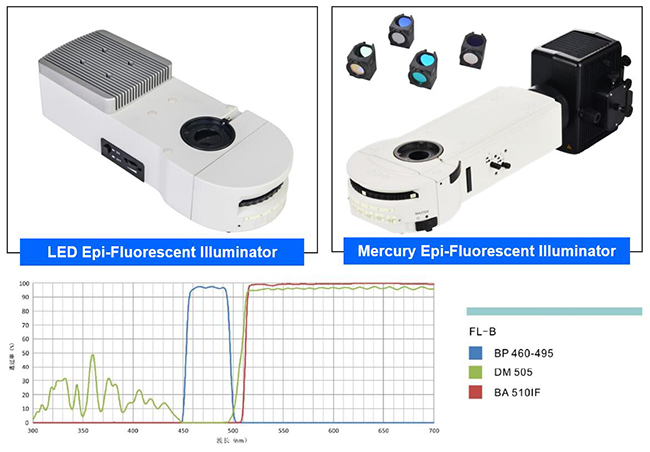

Fluorescent Viewing

The compact epi-fluorescent components includes noise elimination feature which ensures images captured are bright, with high contrast and high signal-to-noise ratio.

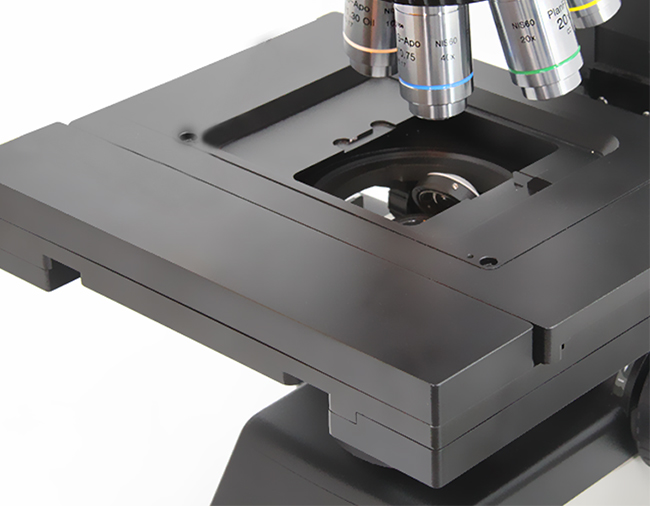

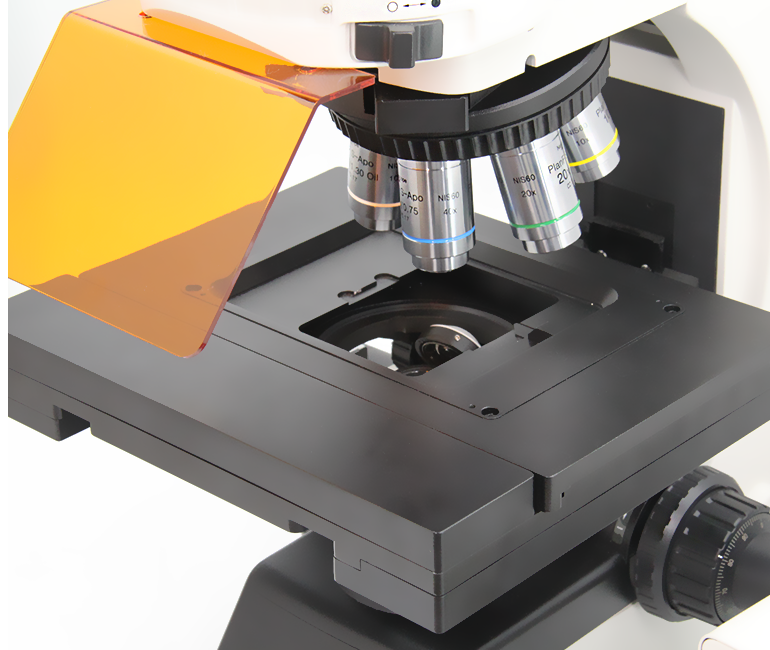

Motorized Working Stage

XYZ Motorized Working Stage, 2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material, Surface Anodized, Anti-Corrosion And Scratch-Resistant

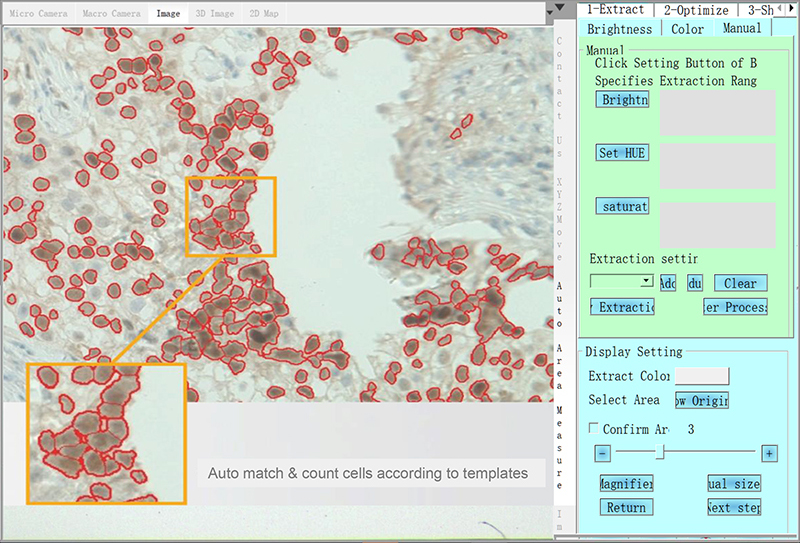

One Key Auto Measurement

Multiple measurement items can be saved as templates, the software intelligently matches similar shapes, removes redundant targets or separates overlapping targets, and automatically performs unified measurement, counting and analysis for multiple targets with one key.

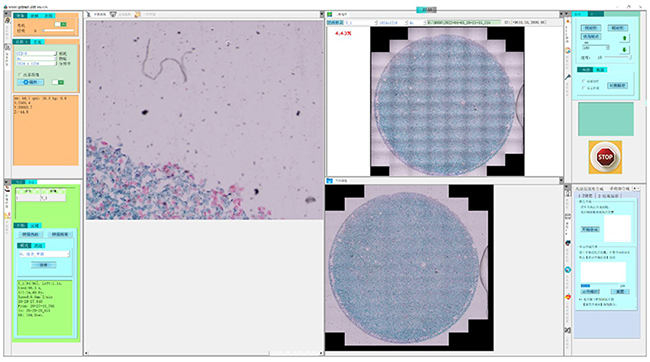

Stitching Optimize

The built-in advanced algorithm can intelligently optimize and correct the grid phenomenon and shadow phenomenon caused by lens aberration, uneven lighting and other factors when scanning and stitching, so that the stitched image will be one high-definition, no offset, no grid, no shadow.


M16.5820 at Work

Image About B Fluorescence Filter


Image About B Fluorescence Filter     Image About G Fluorescence Filter



M16.5820 Catalogue Download
