What Is an Atomic Force Microscope and Why Do Its Modes Matter?
What is an Atomic Force Microscope?
The atomic force microscope is a key tool in the nanotechnology field. It allows researchers to ‘see’ at the atomic level and even ‘work’ with surfaces at the atomic level. The images below were gathered using the OPTOEDU series of atomic force microscopes in industry and educational settings. Because of their precise, consistent operation, the OPTOEDU systems are ideal tools for high-resolution surface imaging as well as high-quality surface modification. The OPTOEDU features simple-to-use controls that enable the user to ‘see’ details that previously were not observable.
How does it work? Decoding Atomic Force Microscopy Principles

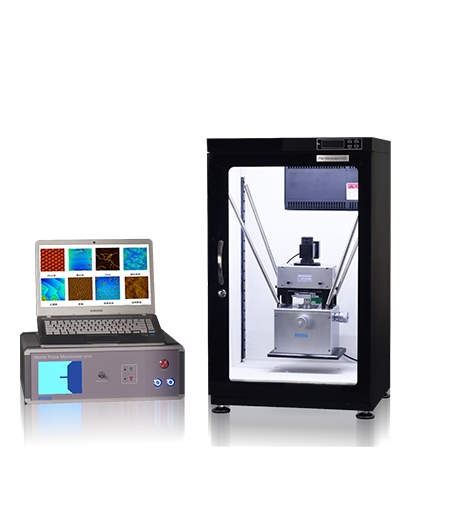

A basic understanding of AFM principles helps laboratories achieve nanometer-scale measurement accuracy. A sharp tip on a springy cantilever is scanned over the surface of the sample. By approaching the sample closely, van der Waals forces will bend the springy cantilever. The deflection of the cantilever is measured by a laser beam that is reflected off the back of the cantilever with high precision using a position-sensitive detector. The OPTOEDU A62.4500 even comes with a pre-aligned optical path. This means that no additional fine-tuning is required, and even inexperienced users get precise data immediately.
Why Do Different AFM Modes Exist?
Contact Mode: Why is it the Standard for Hard Surfaces?
Atomic force microscopy can be operated in a simple contact mode where the tip is in contact with the sample surface. A feedback loop is used to maintain a constant bending of the cantilever. In general, this mode of operation is used for hard, tough samples that can withstand lateral forces exerted by the tip. The OPTOEDU platform allows for very precise control of the Z-axis to prevent tip crashes, and it operates at a scan speed that allows for fast acquisition of high-quality images.
Tapping Mode: How to Image Delicate Samples Without Damage?
Tapping mode is a ‘soft’ mode of operation that is well suited for the measurement of soft samples such as cells and polymers. In Tapping mode, the cantilever is driven near its natural resonant frequency. The tip makes light contact with the sample surface for a short time at the bottom of each cycle and thus does not scratch the surface as it would if it were dragged across the surface with high friction as in Contact Mode. The mode is often used for the measurement of DNA strands and very thin cell layers. The OPTOEDU A62.4500 is equipped with an 800x optical microscope, which allows the user to see the sample and place the tip in the correct position prior to the high-resolution scan.
Non-Contact Mode: What role does it play in surface analysis?
Non-contact mode is a dynamic AFM mode in which the cantilever tip remains above the sample surface. In this mode, the cantilever is still excited to vibrate, but the tip is not in contact with the sample. It measures the long-range attractive forces and maps the surface by changes in frequency or phase.
Scanning in non-contact mode means that there is no physical contact between the tip of your microscope’s probe and the sample. Therefore, the tip and the sample will remain intact. Non-contact scanning is particularly suitable for very soft or water-repellent surfaces. It is also the mode of choice for wafer inspection. Here, non-contact scanning allows for detecting tiny defects or even single particles on the surface of a wafer without leaving any new marks on it.
Real-World Atomic Force Microscope Uses: What Can We Actually Measure?
What Topographical Features Can an Atomic Force Microscope Detect?
Atomic force microscopes deliver 3D images at the nano-level of surface structures. OPTOEDU AFMs have the ability to distinguish atomic lattices, micro-grain boundaries, roughness of thin films, defects, and other objects with a lateral resolution of 0.2 nm and vertical resolution of 0.05 nm. With such accuracy, one can study surfaces from semiconductor wafers to polymers.
How Are Mechanical Properties Measured with AFM?
AFM utilizes force spectroscopy and indentation to analyze mechanical properties like stiffness, elasticity, and adhesion. The OPTOEDU system applies known forces to study local mechanical behavior and can be used to investigate polymers, hydrogels, and biological tissue on a nanoscale. Such ability becomes very important for evaluating the mechanical strength and hardness of surfaces and cell mechanics.
What Electrical and Magnetic Properties Can Be Analyzed?
AFMs with conductive tips and magnetic modes can map surface morphology in parallel to electrical conductivity, potential differences, and magnetism. OPTOEDU AFMs provide high-resolution imaging, which is useful for studying semiconductors, magnetic thin films, and nanoelectronic sensors. It is possible to analyze electrical defects, localized conductivities, and magnetic properties on the nanometer scale.
How Can AFM Be Used for 3D Quantitative Measurements?

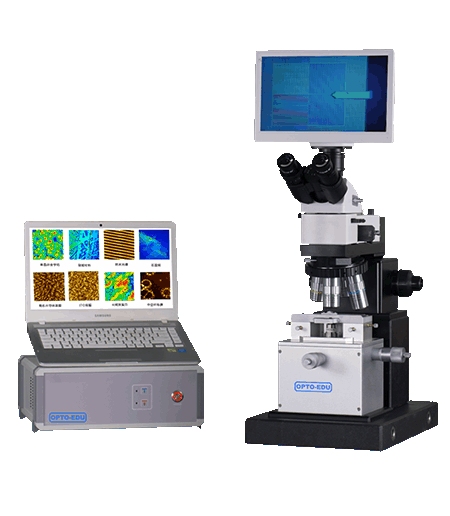

AFM measurements go beyond the limitations of optical microscopy by giving quantitative three-dimensional surface information. AFMs in the OPTOEDU line measure feature height to determine the surface roughness, volume, and morphology of a structure. This technology is necessary in the fields of microelectronics, MEMS devices, and nanotechnology.
What Biological Structures Can Be Investigated?
The AFM is frequently employed in biological studies due to its ability to obtain images of cells, tissues, and biomolecules without damaging them. The OPTOEDU system is capable of accommodating liquid cell attachment for the purpose of studying hydrated samples, enabling the observation of living cells, DNA, proteins, and membranes.
Conclusion
Choosing the right scan mode is key to utilizing the full potential of AFM for surface studies. Contact mode is best for hard samples and for achieving the highest quality topography. Tapping mode provides strong results for soft samples by minimizing lateral forces and reducing sample damage. Our OPTOEDU A62.4500 is a powerful tool for surface mechanics with easy-to-use software. Therefore, more labs than before are able to perform surface topography in great detail.
FAQ
Q: What are the primary uses of the atomic force microscope in industrial quality control?
A:In factories, atomic force microscopes can measure surface finish at the nanometer scale, which is critical for parts requiring specific friction or airflow characteristics.OPTOEDU’sstability is critical for accurate, repeatable measurements in demanding environments.
Q: How does the OPTOEDU system simplify atomic force microscopy principles for students?
A: The OPTOEDU design has a scanner and base combined into one solid block. Vibration is low, and so is the number of setup steps. Your students can now concentrate on the basic physics of tip-sample forces rather than on the alignment of the SPM.
Q: Why is a vibration-isolated environment necessary for an atomic force microscope?
A: The instrument is measuring forces at the atomic level. Minor floor or air vibration can introduce artifacts to the data. OPTOEDU instruments are equipped with vibration dampeners to stabilize the data.
Q: Can a OPTOEDU atomic force microscope image samples in liquid?
A: Yes. A liquid cell lets the atomic force microscope work with samples in their natural wet state. This feature matters in biology, where drying can change the sample.
Q: What is the resolution limit of a standard atomic force microscope?
A: The OPTOEDU A62.4500 reaches 0.05 nm vertically and 0.2 nm laterally. These numbers allow clear views of atomic rows and molecular shapes on many surfaces.
