Teaching Level Separate controller & main body design, with Tapping Mode, 4x Objective, Miniaturized Detachable Design
The laser detection head and the sample scanning stage are integrated, the structure is very stable, and the anti-interference is strong
The intelligent needle feeding method of motor-controlled pressurized piezoelectric ceramic automatic detection protects the probe and the sample
Automatic optical positioning, no need to focus, real-time observation and positioning of the probe sample scanning area
Spring suspension shockproof method, simple and practical, good shockproof effect

Downlaod

Tapping Mode, 4x Objective, Miniaturized Detachable

A62.4500 Product Details

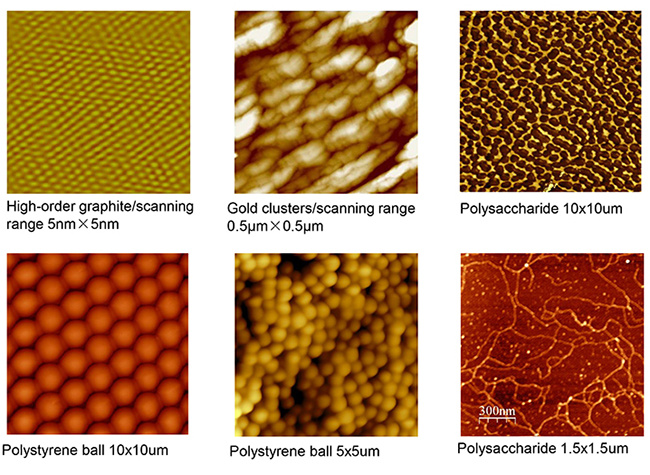

Application Case

◆ The laser detection head and the sample scanning stage are integrated, the structure is very stable, and the anti-interference is strong

◆ Precision probe positioning device, laser spot alignment adjustment is very easy

◆ The single-axis drive sample automatically approaches the probe vertically, so that the needle tip is perpendicular to the sample scan

◆ The intelligent needle feeding method of motor-controlled pressurized piezoelectric ceramic automatic detection protects the probe and the sample

◆ Automatic optical positioning, no need to focus, real-time observation and positioning of the probe sample scanning area

◆ Spring suspension shockproof method, simple and practical, good shockproof effect

◆ Metal shielded soundproof box, built-in high-precision temperature and humidity sensor, real-time monitoring of the working environment

◆ Integrated scanner nonlinear correction user editor, nanometer characterization and measurement accuracy better than 98%
