A18.4903 Product Details

▶ Unique and Clever Lighting System

This illumination system is an innovative combination of near-coaxial falling light , four-zone lamps and six-color oblique illumination, which can evenly illuminate glossy flat surfaces, enhance scratched, recessed or embossed features, highlight indicated unevenness, overcome interference caused by surface reflection, improve microscope reproducibility, and highlight more details that cannot be displayed by pure optical microscopes.

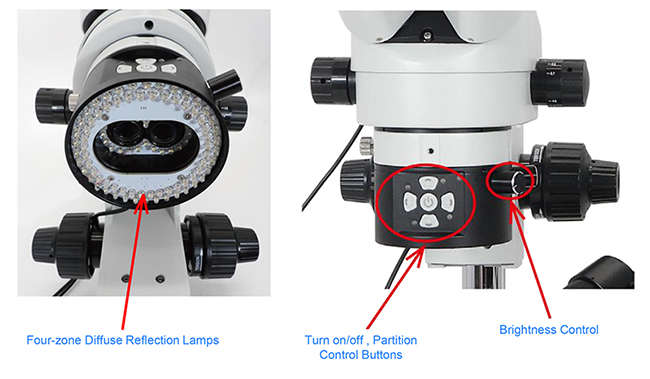

▶ Four-zone Diffuse Reflection Lamps

The four-zone diffuse reflection lamps is an LED ring design, containing 72 high-brightness lamp beads, and the four zones of top, bottom, left and right can be freely controlled.

▶ Near-coaxial Falling Light

Evenly illuminate flat, shiny surfaces and enhance scratched, recessed or embossed features. Highlight object surface unevenness, overcome interference caused by surface reflection, improve microscope reproducibility, and highlight more details that cannot be displayed by conven- tional microscopes.

Near-coaxial Falling Light + Four-zone Diffuse Reflection Lamps + Six-color Oblique Illumination，Observation effect of practical application of multiple light sources

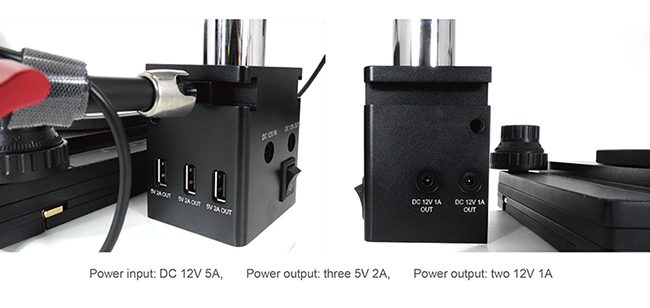

▶ Embedded Centralized Power Supply

The built-in centralized power outlet design only needs a power cord to simultaneously power near-coaxial lamps, four-zone lamps,, six-color oblique lamps and cameras, making the desktop clean and net.

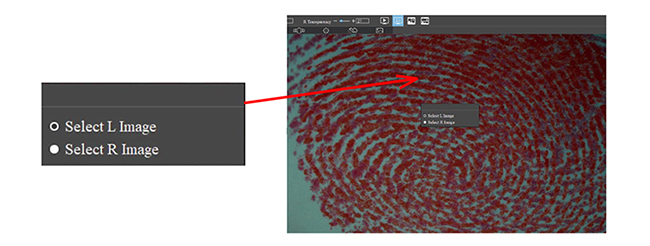

Support click to select individual moving static L or R image for compare similar features.

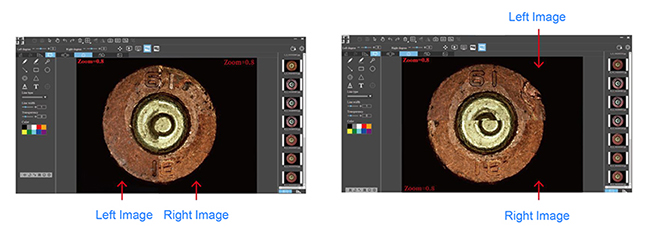

A18.4903 Exclusively Comparison Software

-Full field of view displayed on double-screen can be arbitrarily overlapped, cut, and arbitrarily setting transparency, which is intuitive for everyone.

-Support history image comparison, dynamic and static image contrast, comparison.
