A18.1832 Product Details

The A18.1832 Touch Screen Motorized Digital Comparison Microscope offers 2x–240x magnification with a 0–45° tilt-adjustable binocular head and WF10x/22mm, WF20x/13mm eyepieces. Featuring a motorized sextuple nosepiece, LWD infinity plan objectives (0.5x–6x), and auxiliary lenses (4x, 2.0x), it includes XYZ stage movement, rotation, and 150mm motorized column adjustment. Equipped with Win11 touch screen tablet integration for advanced analysis and control, this microscope ensures precision and efficiency in digital comparison tasks.

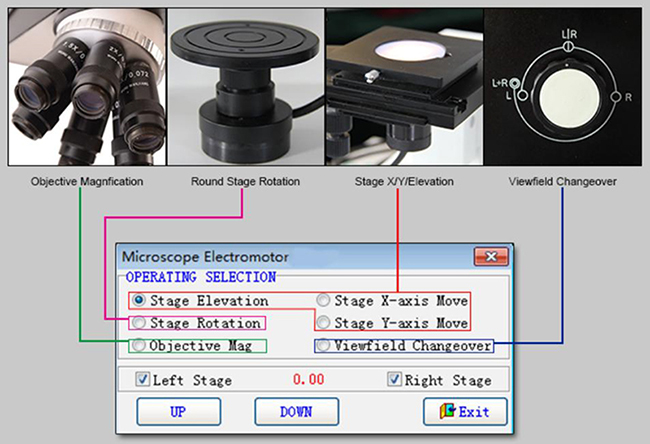

Motorized/Manual Control To Change Objective Magnification

Motorized/Manual Control Round Working Stage Rotation +/- Direction

Motorized/Manual Control Working Stage X/Y/Elevation 3D Movement

Motorized/Manual View field Changeover Full /Split /Overlapping Image

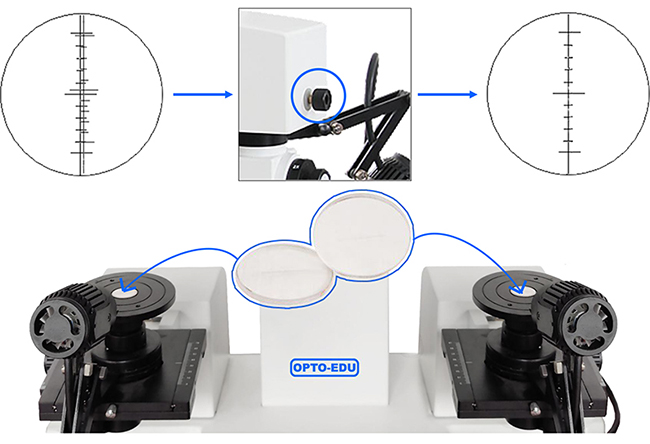

▶ Magnification Correction System, With Correcting Lens

Put 2 correcting lens on 2 working stage, see through eyepiece, find  2 clear scale images in overlapping mode, adjust correcting knob on right side of microscope body, until the 2 scales fully match each other.

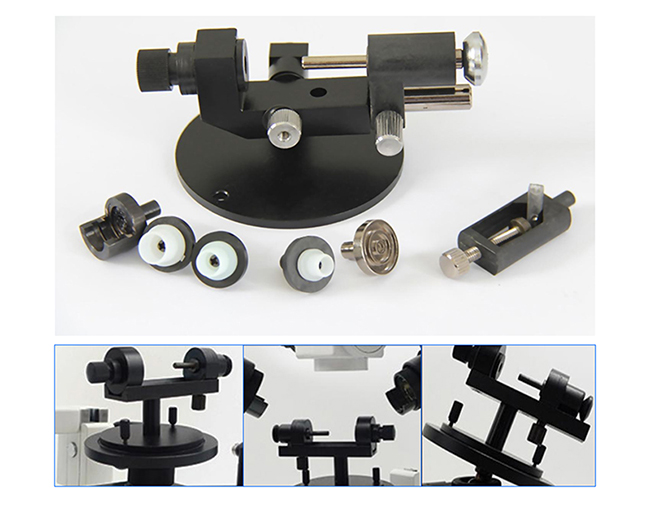

▶ Bullet Holder Set

To hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets.

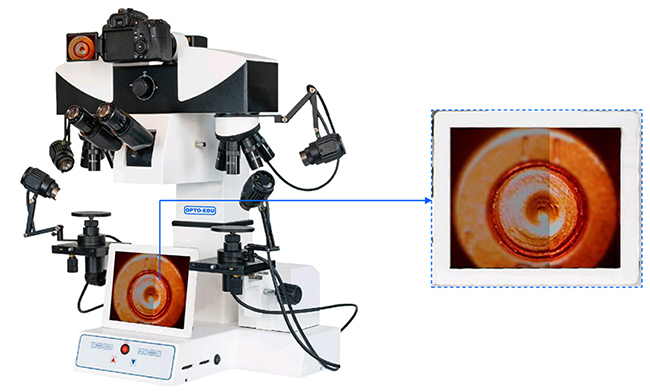

◉ Newly Developed 2025! Win11 Touch Screen Tablet Integrated Analysis Software & Control System

◉ Total Magnification 2x-240x, 0-45° Tilt Adjustable Binocular Head With Eyepiece WF10x/22mm, WF20x/13mm

◉ Sextuple Nosepiece, LWD Infinity Plan Objectives 0.5x,1x,1.5x,2x,4x,6x, Auxiliary Lens 4x,2.0x

◉ Motorized 6 Holes Nosepiece, Motorized Working Stage XYZ Moving & R Rotating

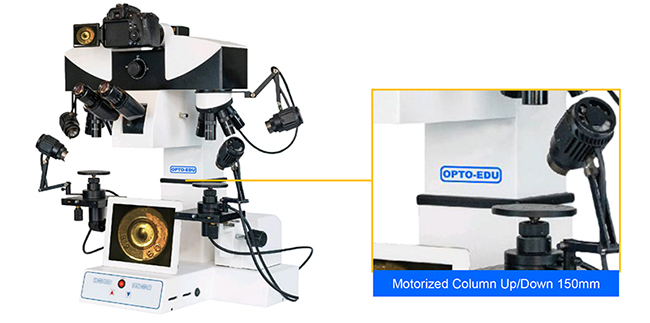

◉ Motorized Column Up/Down 150mm, Motorized Separation Line Moving
