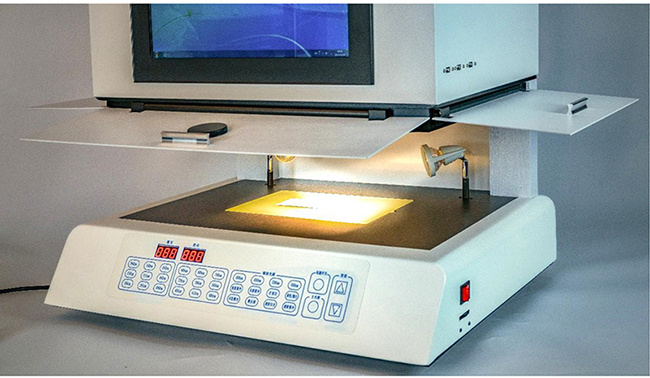

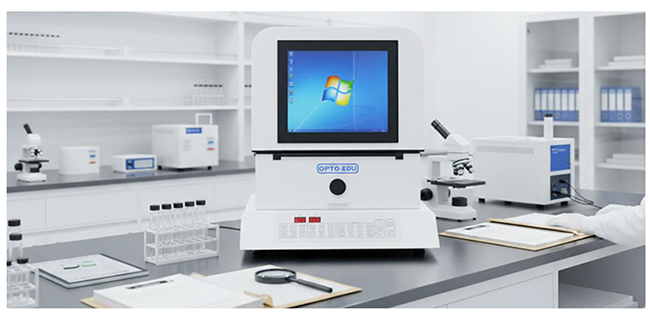

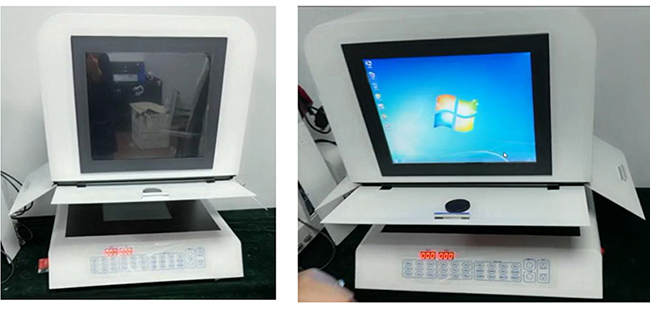

A18.1819 Product Details

Features

◉ Brand New Design 2025! 17″ Touch Screen All-in-On Document Examination System

◉ USB 3.0, 2.0M 1/2.8″ CMOS, 30x Optical Zoom, 12x Digital Zoom, 60fps@1080p,

◉ Built-in 17″ Touch Screen Computer With Win11, I5/8G/512G HD, USB3.0x1, USB2.0x2

◉ Pre-Installed Forensic Analysis Software, 3 Direction Open Door For Large Documents

◉ Diffuse Reflection Axis Light, UV Light, IR Light, Visible Excite & Receive Light Sources.

Main Functions

Various excitation light and filter combinations test fluorescence differences in inks.

Reflective light with filters assesses ink absorption and reflection across light bands.

Reflected light and filters evaluate infrared penetration effects on inks.

Transmitted light with filters tests infrared penetration through inks.

Side-lit grazing incidence reveals scratches and cuts on documents.

Bottom-up transmitted light detects cuts and repairs in documents.

Image System

USB 3.0 digital camera with 1/2.8″ 2.0MP CMOS sensor

30x Optical zoom (With view field 4.3~129mm)

12x Digital zoom continuously

Full HD video output up to 1080p @60fps

Uncompressed and lossless video transmission

Pre-Installed Forensic Analysis Software, 3 Direction Open Door For Large Documents

Support Windows & Linux system

A18.1819 Work With A30.1801 Forensic Image Analysis Software Crime Image

These image cases demonstrates handwriting analysis using a forensic document examiner’s instrument, revealing subtle variations in pen pressure and stroke sequence. The high-resolution comparison highlights discrepancies between genuine and forged signatures, aiding in accurate authentication and providing critical evidence in legal investigations.
