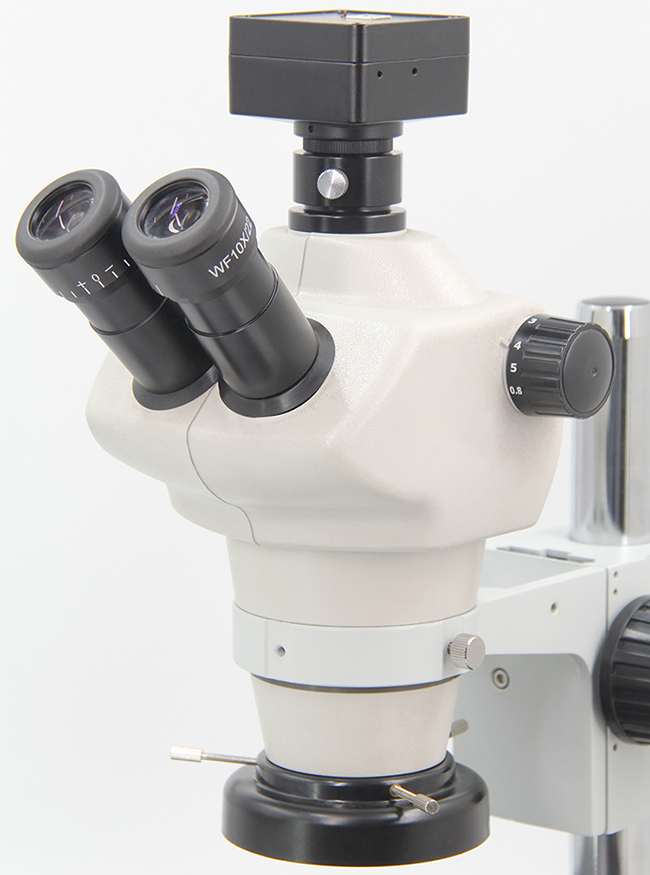

Binocular Head 45°Inclined, IPD 52-75mm

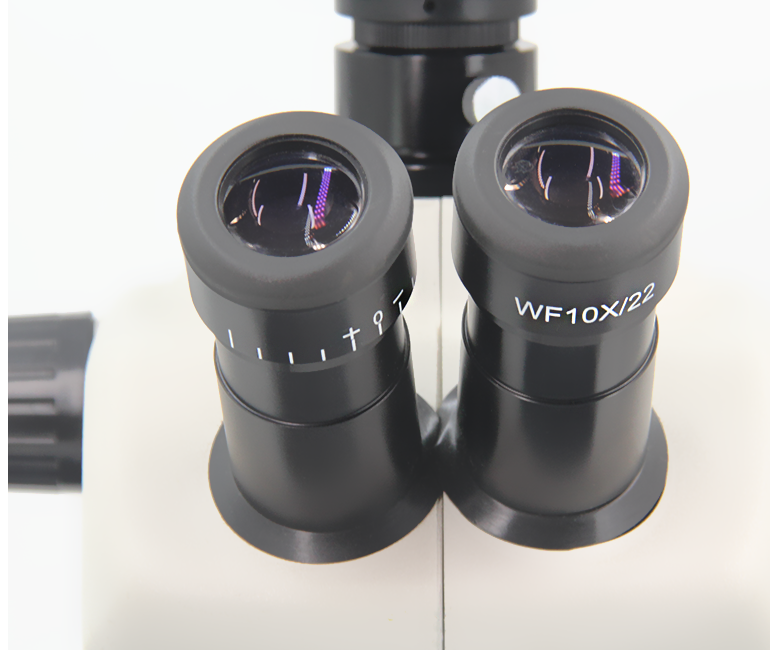

WF10x/22mm, Diopter Adjustable

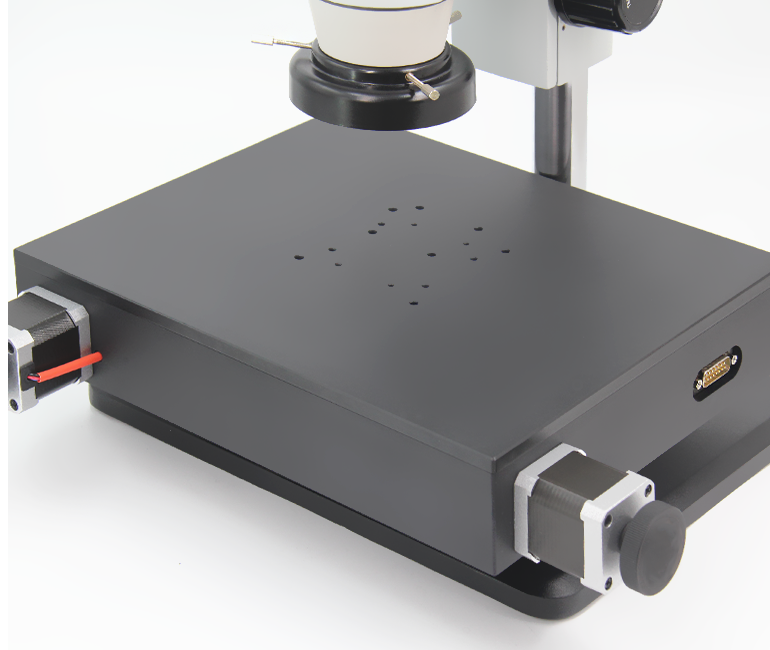

Motorized Control Moving Range 110x110mm, 2-Phase Stepping Motor,
High Precision Module, Aluminum Alloy Material, Surface Anodized,
Anti-Corrosion And Scartch-Resistant

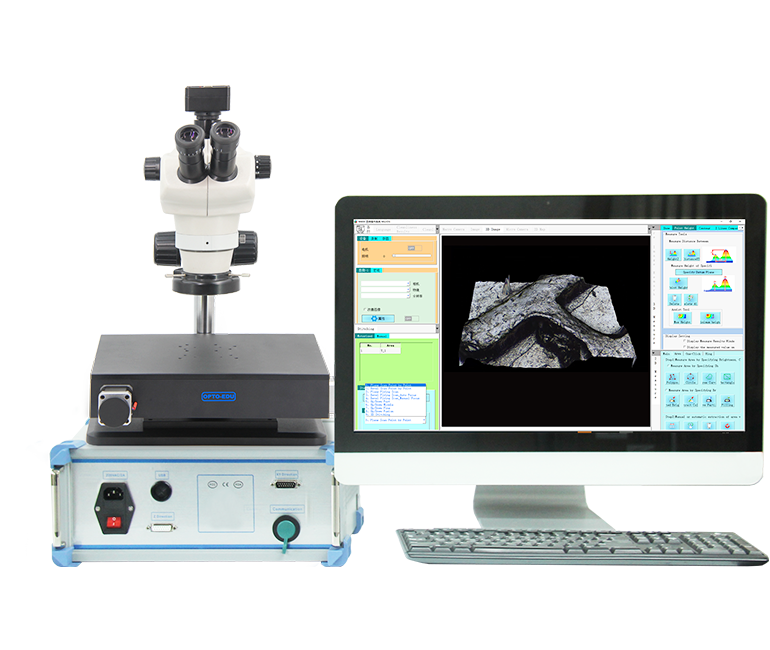

Controlled by the mouse to rotate freely, zoom in and out, open the ruler,
color identification and other auxiliary tools, which is convenient to visually

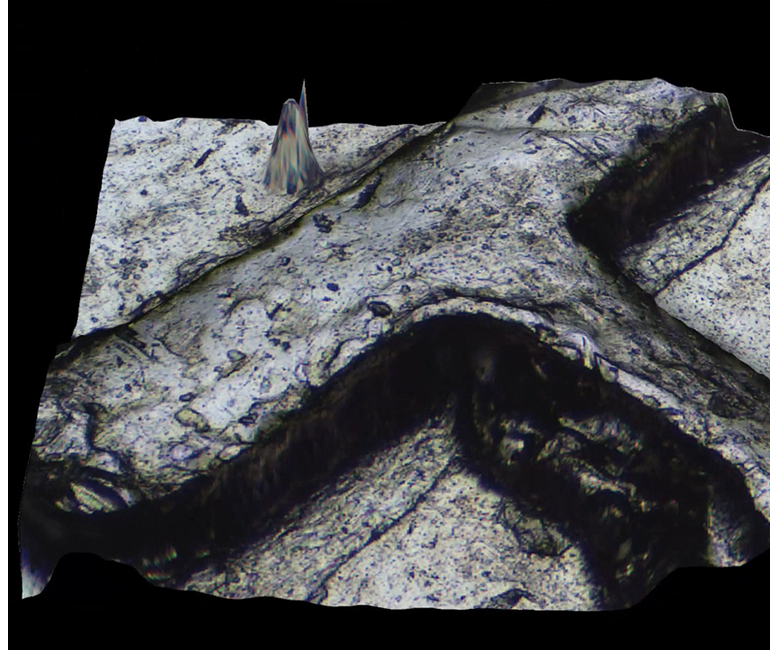

observe the 2D surface shape and 3D structure of the object from any angle
● 0.8x-5.0x 1:6.3 Optical Zoom Lens With Transmit & Reflect LED Ring Light
● X/Y Motorized Stage Large Moving Range 100x100mm Resolution 0.05um
● Full Auto 2D Scan Image Sticthing With Quick & Precise Mode
● 2D Free Area Selection For Full Range Measuring Function
● Electrical Map To Over View Full Object Image, Click To Reach Any Interesting Point

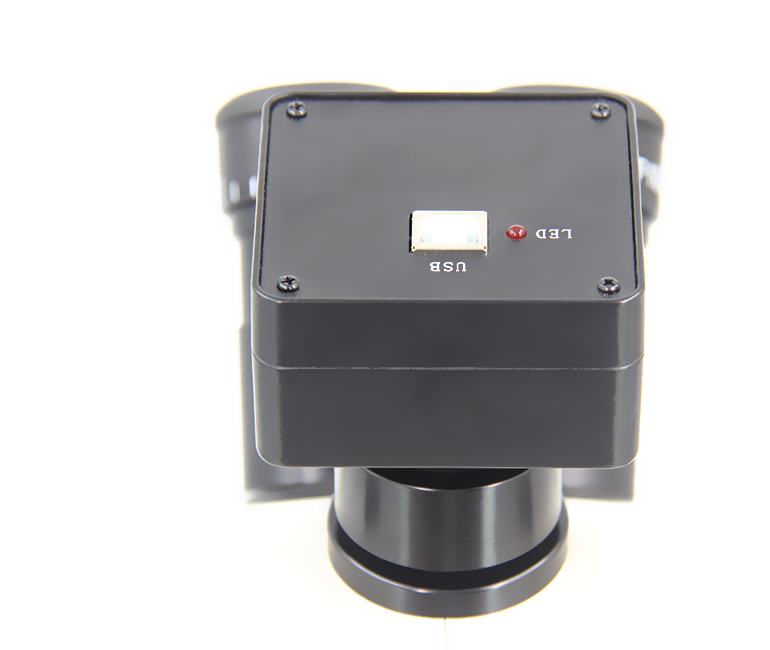

1″ CMOS, USB3.0, C-Mount, 60FPS@1824×1216, C-Mount
Binocular Head 45°Inclined, IPD 52-75mm
Zoom Ratio: 1:6.3, With LED Ring Light Source

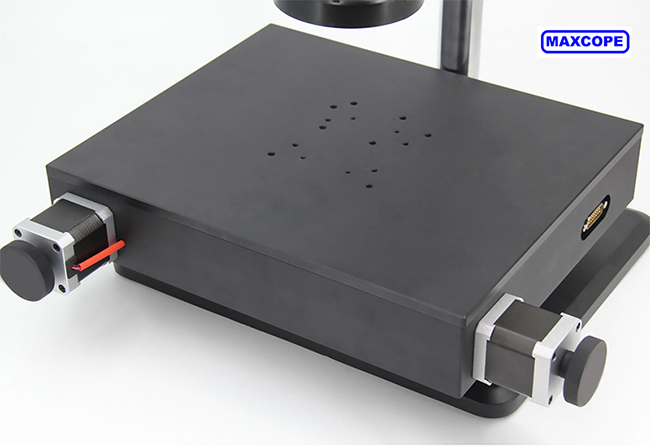

Motorized Control Moving Range 110x110mm, 2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material, Surface Anodized, Anti-Corrosion And Scartch-Resistant

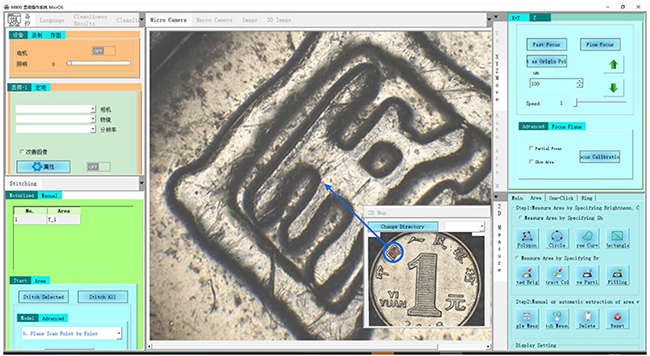

After scanning and stitching to generate a panoramic image, it can be used as an electronic 2D map for navigation. Click the 2D map to control the motorized stage to quickly locate the specified position for high-magnification observation

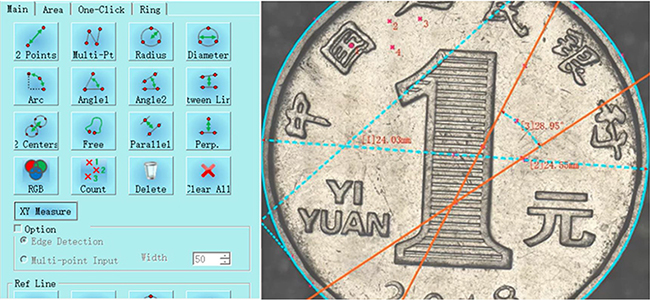

10+ Functions, including length, angle, radius, diameter, free curve length, radius, diameter, arc length, RGB measurement, counting, etc., and a variety of auxiliary lines and reference line tools are provided.

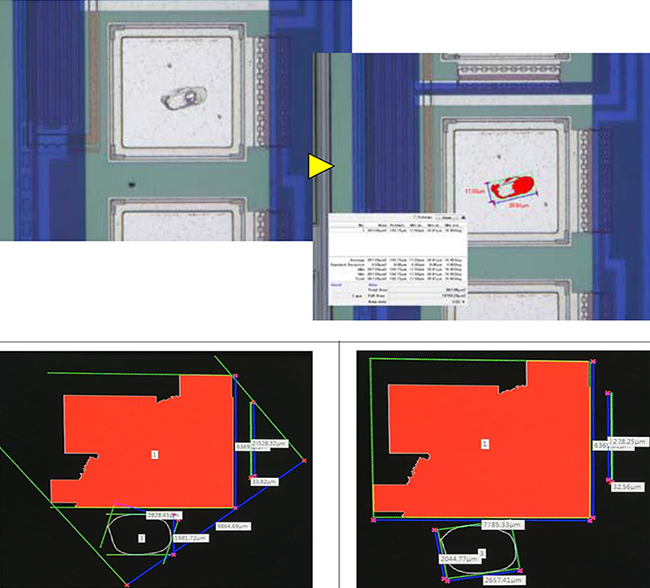

Just use the mouse to specify the measurement range, the software automatically detects the edge of the object and selects the measurement area, you can add or delete measurement areas at will, and measure the largest area of any complex shape by automatic edge recognition instead of manual precise positioning

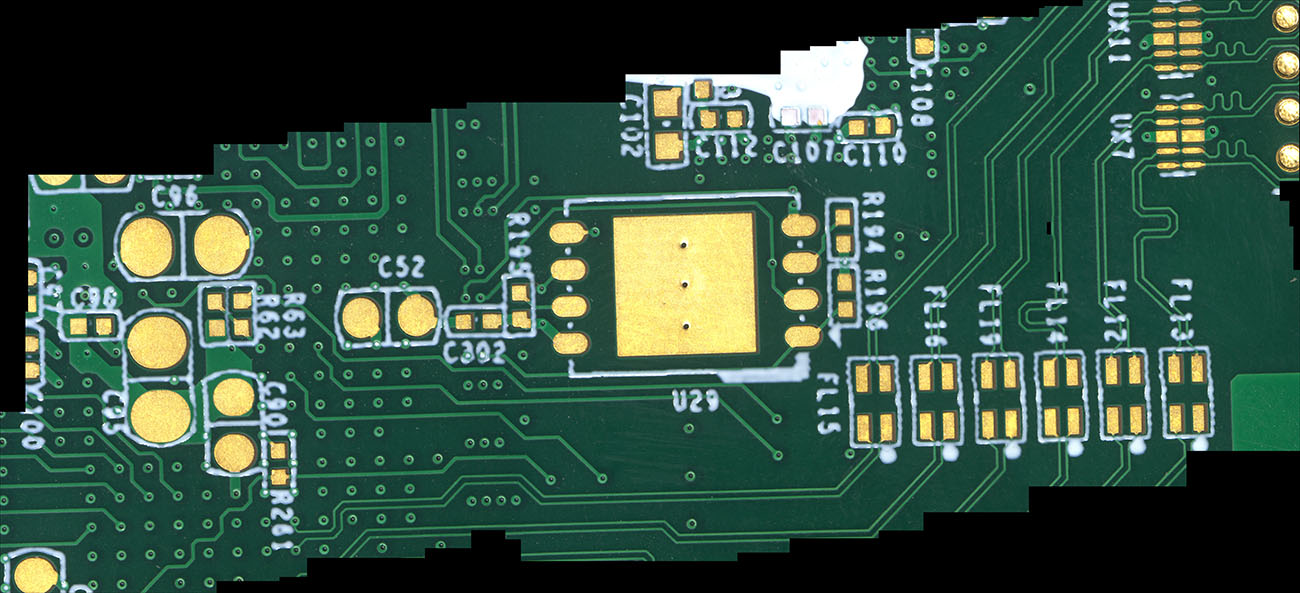

| Circuit Board Mosaic Diagram |
 |

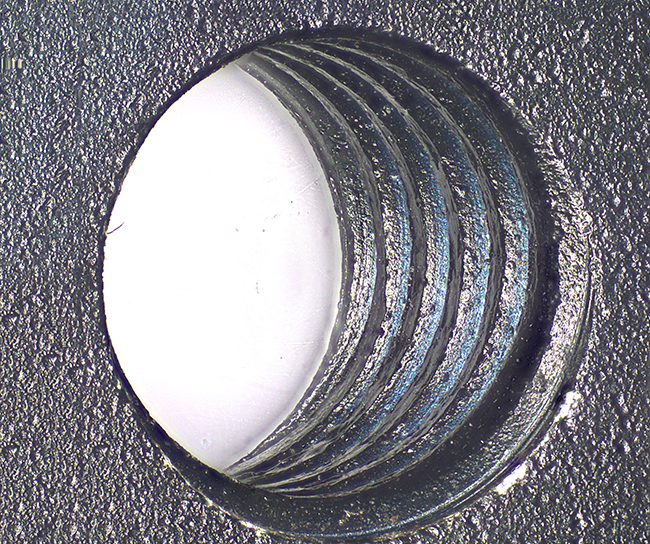

| Screw Hole | Circuit Board | ||
 |
 |
 |
