M16.5810 Product Details

M16.5810

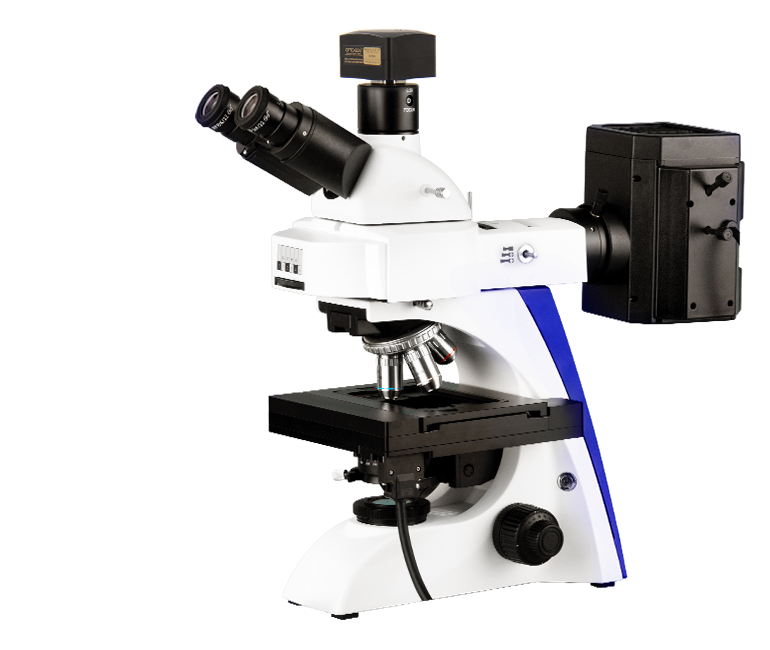

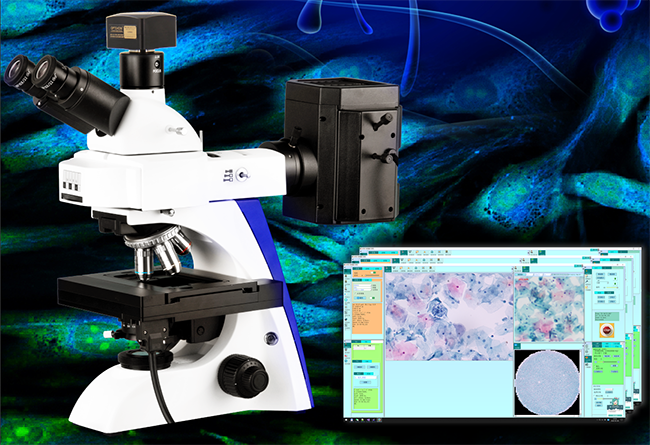

Motorized Fluorescent Microscope, BF/FL, XYZ Motorized

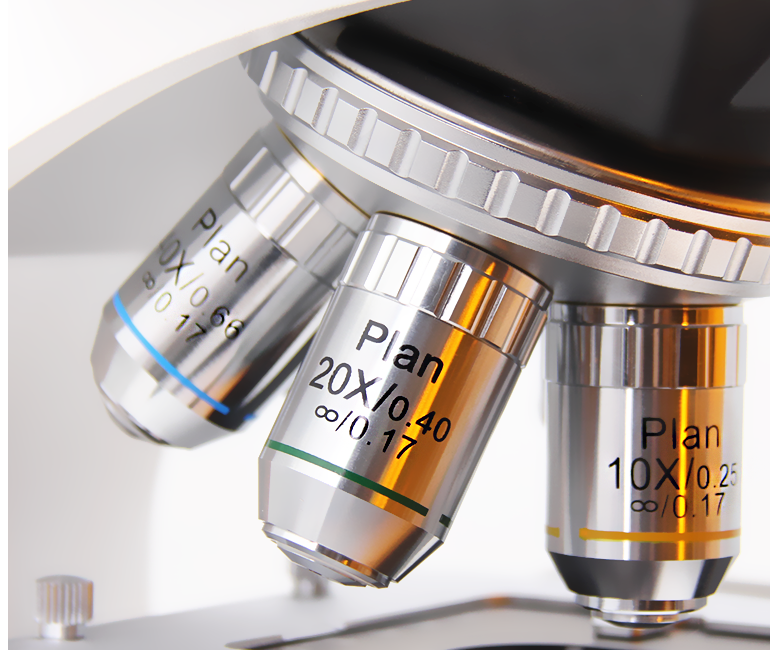

● Infinity Plan Semi-APO FL4x10x20x40x100x, Fluorescent B,G,U,V

● X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um

● Full Auto 2D Scan Image Stitching With Quick & Precise Mode

● Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring

● USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software

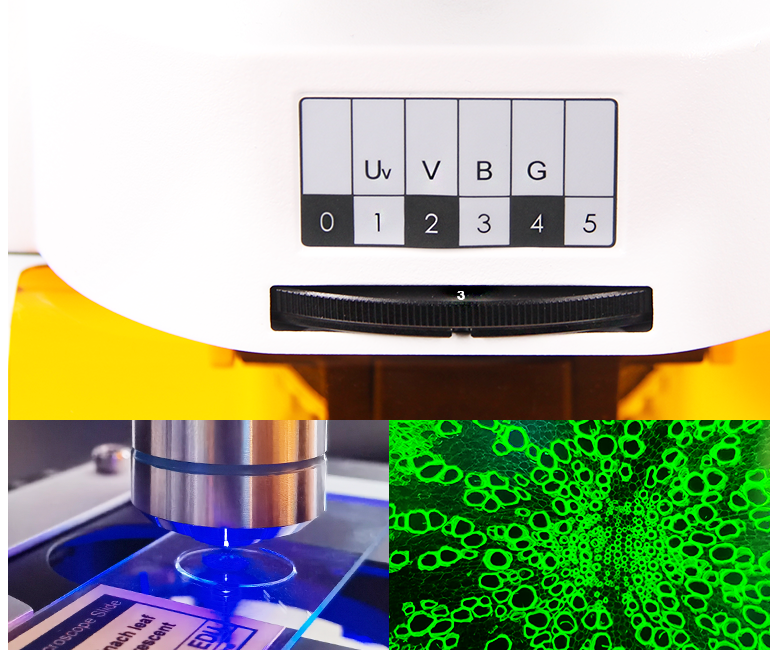

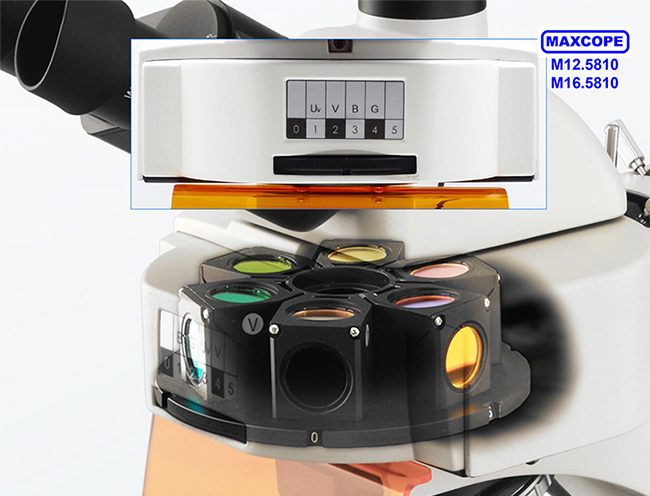

6 Holes Disk Fluorescence Unit

Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View

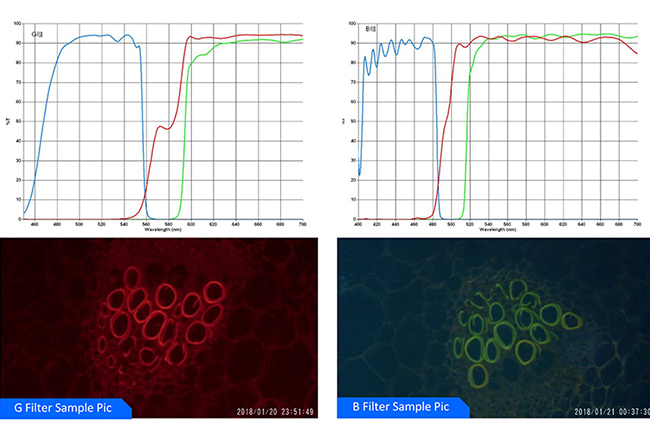

Fluorescent Filters

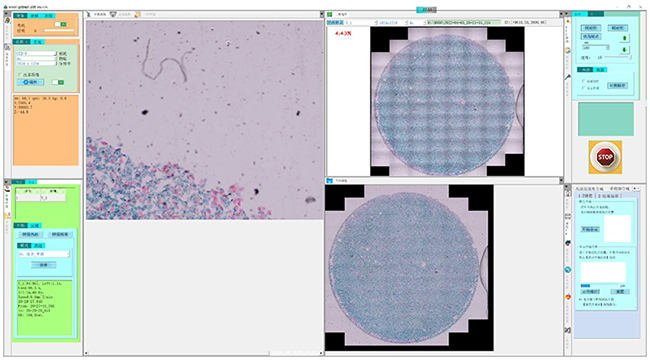

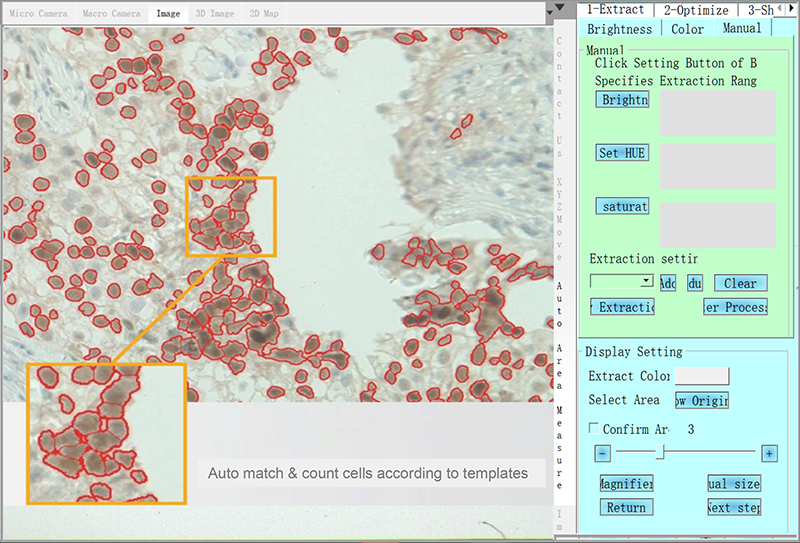

Stitching Optimize

The built-in advanced algorithm can intelligently optimize and correct the grid phenomenon and shadow phenomenon caused by lens aberration, uneven lighting and other factors when scanning and stitching, so that the stitched image will be one high-definition, no offset, no grid, no shadow.

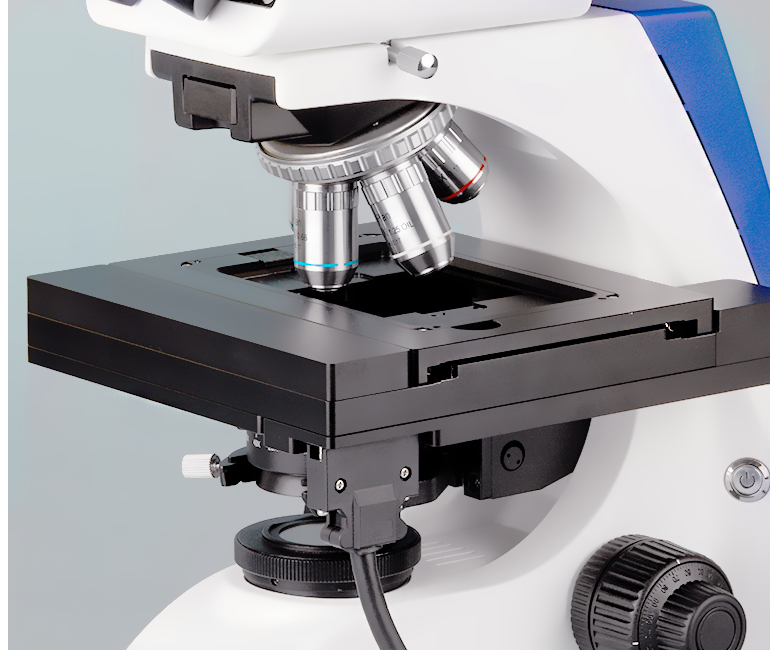

XY Motorized Control

Control the motorized stage through software, support one-click set/return to origin point, Long press the mouse and drag in the camera preview window to control the electric platform to move in the corresponding direction

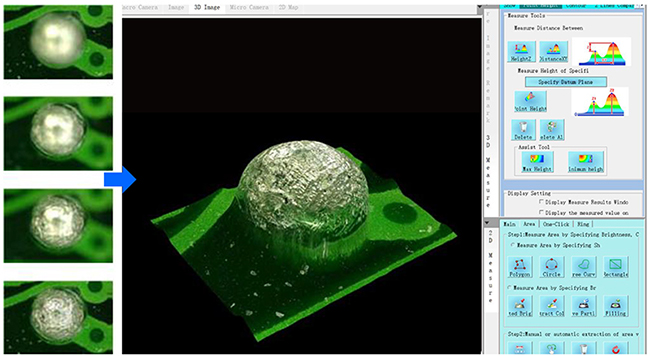

3D Stitching

3D stitching mode can automatically focus on uneven objects, take pictures at different heights, obtain a full-frame clear 2D image composed of all clearly focused images, and stitch all focused image together to form a 3D image, and retain all the 3D measurement data of the observed object




M16.5810 at Work

Image About G Fluorescence Filter



Image About B Fluorescence Filter     Image About G Fluorescence Filter







M16.5810 Catalogue Download
